NEW CID ERICSSON AVP3000 3G HD DSNG ENCODER internal DVBS2 L-Band Output

$13,500.00

In stock

Product Details

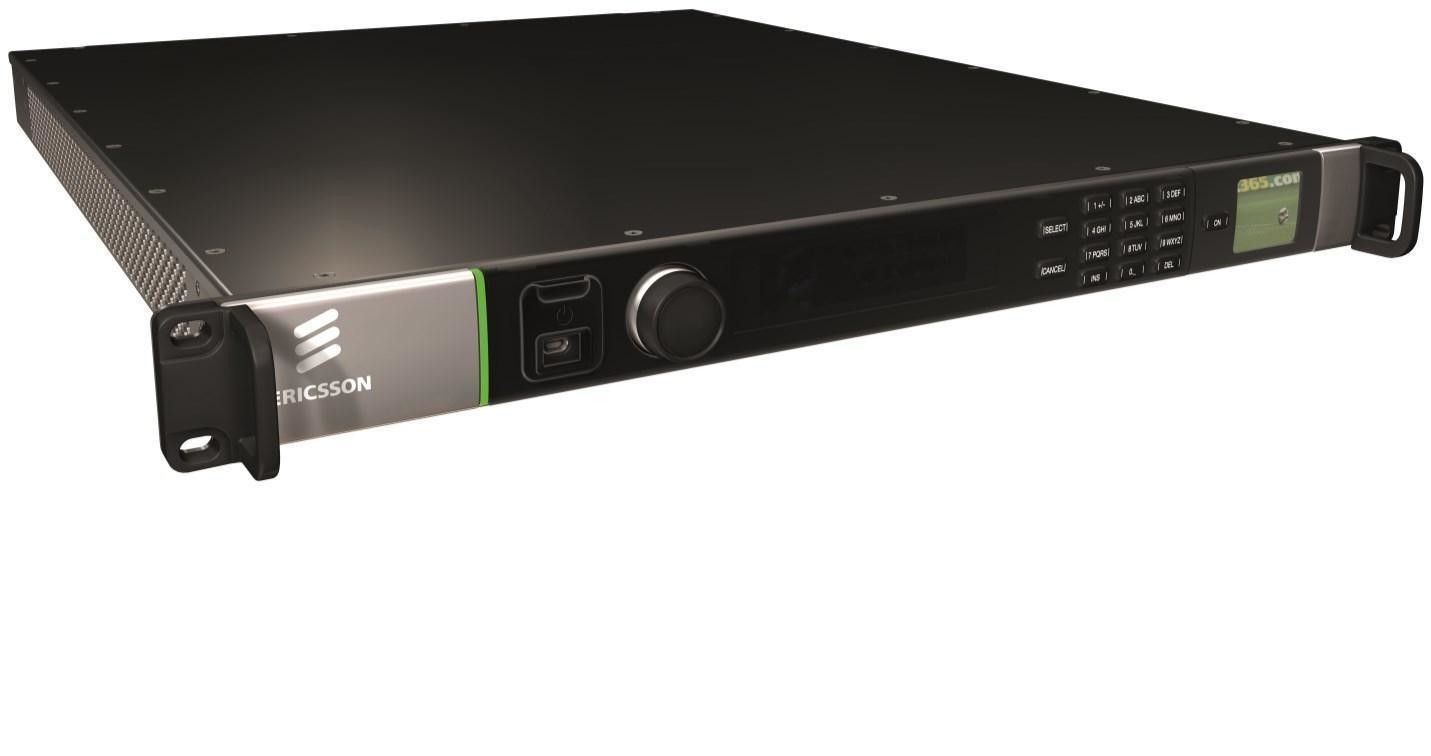

AVP 3000 HD DSNG ENCODER

The AVP 3000 Voyager is the latest generation of the market leading Voyager product for live news, sports and entertainment, capable of multi-codec, multi-format and multi-channel operation. It is the most flexible and scalable news gathering system on themarket, reflecting Ericsson’s technology leadership and unique heritage in this segment.

The AVP 3000 Voyager excels in providing maximum flexibility, performance and interoperability while delivering best return on investment to operators and service providers through the widest range of software upgrade paths and expansion options. To make itsimpler to select the most popular options, a set of five AVP 3000 configuration packs are now available at very attractive fixed prices.

The configuration packs provide a hierarchy of functionality starting with the SD DSNG, moving to

HD DSNG, then Events, then Premium Events, and finally World Events pack.

These packs have now been improved, the enhancements include the addition of an ASI I/O module to all packs, dual AC PSU for the top three packs and DVB-S2X support in the World Events pack.

It is possible to order an AVP 3000 with the specific combination of software and hardware options that you require. Also any

hardware or software upgrades can be added once the unit has been delivered, refer to the AVP 3000 data sheet for details.

PRODUCT OVERVIEW

The most Flexible Integrated DSNG

Based on two decades of encoder design experience, and a series of SNG firsts the AVP 3000 Voyager is a future proof modular platform capable of multi-codec, multi-format and multi-channel operation. It now supports DVB-CID and DVB-S2X.

Highest Compression Performance

The AVP 3000 uses Ericsson’s in house video encoding algorithms and deliver best in class video compression performance from very low bit rate to high bit-rate operation.

Multi-codec

The AVP 3000 can provide MPEG-2, MPEG-4 AVC or even JPEG 2000* encoding, 4:2:0 8 bit or 4:2:2 10 bit, SD or HD, even UHDTV is possible (using two AVP units).

* JPEG 2000 encoding requires the addition of a CE-aJ2K encoding module.

Multi-output

The AVP 3000 provides an L-Band or IF satellite output, as well as two IP output ports. It can upgraded to provide ASI output or G.703 output.

Easy to Operate

The AVP 3000 provides a web user interface that has been designed in consultation with our customers to provide a clear, simple and intuitive for the SNG operator. It can also be controlled via a fully functional front panel, which includes a high resolution display for video confidence monitoring.

Reassurance of World Wide Support

Ericsson can provide 24/7 global support.

SD DSNG

AVP 3000 Voyager Configuration Pack

(AVP3000/CP/SD/DSNG/A FAZ 101 0196/144)

Entry level SNG Encoder capable of:

SD MPEG-2 Encoding

DVB-S/SNG/S2 Satellite Modulation

2 Stereo pairs of MPEG-1 Layer II audioencode.

ASI Output (2 Outputs)

Six slot single PSU chassis (AVP 3000/BAS/1AC)

Integrated redundant IP outputs.

Fully functional front panel control including video confidence monitor.

Voyager web user interface.

Satellite Modulator Output

Integrated DVB-S/S2 Modulator with IF and L-Band outputs.

DVB-S

DVB-DSNG 8 PSK and 16QAM (VOY/SWO/DSNG)

DVB-S2 QPSK and 8PSK (VOY/SWO/DVBS2)

ASI I/O Module (CE/HWO/ASI/2IN2OUT) Encoder Module (CE/HWO/CE-xa)

3G/HD/SD-SDI video input

Composite video input

Embedded (SDI) and AES digital audio input

Analogue audio input

SD MPEG-2 video encoding

2 stereo pairs of MPEG-1 Layer II audio encoding

VANC data extraction an support for generic VANC (SMPTE 2038)

HD DSNG

AVP 3000 Voyager Configuration Pack

(AVP3000/CP/HD/DSNG/A FAZ 101 0196/145)

As SD DSNG but adds:

HD MPEG-2 Encoding

SD and HD MPEG-4 AVC Encoding

Additional Stereo pair of MPEG-1 Layer II

audio encode.

As above plus:

HD video encoding. (CE/SWO/CE-x/HD)

MPEG-4 AVC video encoding. (CE/SWO/CE-x/H264)

additional stereo pair of MPEG-1 Layer II audio encoding

(giving 3 in total) (CE/SWO/M1L2)

EVENTS

AVP 3000 Voyager Configuration Pack

(AVP3000/CP/EVENTS/A FAZ 101 0196/146)

As HD DSNG but adds:

Dual AC PSU chassis

4:2:2 10 bit video encoding.

BISS encryption.

As above plus:

Six slot Dual PSU chassis (AVP 3000/BAS/2ACFL)

4:2:2 8 or 10 bit video encoding. (CE/SWO/CE-x/H422)

BISS encryption. (CE/SWO/BISS)

PREMIUM EVENTS

AVP 3000 Voyager Configuration Pack

(AVP3000/CP/PREM/EV/A FAZ 101 0196/147)

As Events but adds:

DVB-S2 16 APSK and 32 APSK

Ericsson’s Phase Aligned Audio.

Additional Stereo pair of MPEG-1 Layer II

audio encode.

As above plus:

DVB-S2 16 APSK and 32 APSK modulation. (VOY/SWO/DVBS2/HOMS)

Ericsson’s Phase Aligned Audio (5.1). (CE/SWO/PAA)

additional stereo pair of MPEG-1 Layer II audio encoding

(giving 4 in total) (CE/SWO/M1L2)

WORLD EVENTS

AVP 3000 Voyager Configuration Pack

(AVP3000/CP/WORLD/EV/A FAZ 101 0196/148)

As Premium Events but adds:

External sync. input

DVB-S2X support

4 more stereo pairs of MPEG-1 Layer IIaudio encode.

Additional Phase Aligned Audio license.

As above plus:

External sync input module (CE/HWO/EXTSYNC)

DVB-S2X support (AVP/SWO/DVBS2X)

4 additional stereo pair of MPEG-1 Layer II audio encoding

(giving 8 in total) ( 5 x CE/SWO/M1L2)

Additional Ericsson’s Phase Aligned Audio (5.1). (CE/SWO/PAA)

n= Included

r= Field upgrade available

SD DSNG

HD DSNG

EVENTS

PREMIUM EVENTS

WORLD EVENTS

CHASSIS

Single AC Power Supply

n

n

Dual AC Power Supply

n

n

n

Hot-Swappable Modules

n

n

n

n

n

Built-In Video Confidence Monitor

n

n

n

n

n

BASEBAND VIDEO AND AUDIO INPUTS

Analogue Composite CVBS Interface

n

n

n

n

n

SD-SDI Interface

n

n

n

n

n

HD-SDI Interface

n

n

n

n

n

3 Gbps Capable HD-SDI Interface

n

n

n

n

n

Sync input (External sync input option card).

r

r

r

r

n

Discrete Audio Intputs (Analogue or AES)*

n

n

n

n

n

Balanced Analogue Audio*

n

n

n

n

n

Balanced Digital Audio (AES-EBU)*

n

n

n

n

n

VIDEO ENCODING

MPEG-2 SD 4:2:0 Encoding

n

n

n

n

n

MPEG-2 HD 4:2:0 Encoding

r

n

n

n

n

MPEG-2 SD 4:2:2 Encoding

r

r

n

n

n

MPEG-2 HD 4:2:2 Encoding

r

r

n

n

n

MPEG-4 (AVC) SD 4:2:0 Encoding

r

n

n

n

n

MPEG-4 (AVC) HD 4:2:0 Encoding

r

n

n

n

n

MPEG-4 (AVC) SD 4:2:2 Encoding

r

r

n

n

n

MPEG-4 (AVC) HD 4:2:2 Encoding

r

r

n

n

n

MPEG-4 (AVC) HD 4:2:2 10-bit Encoding

r

r

n

n

n

MPEG-4 (AVC) HD 4:2:2 1080p 50/60 fps

r

r

r

r

r

JPEG 2000 SD 4:2:2 Encoding

r

r

r

r

r

JPEG 2000 HD 4:2:2 Encoding

r

r

r

r

r

AUDIO ENCODING

MPEG-1 Layer II Encode (stereo pairs)

2r

3r

3r

4r

8

Dolby® Digital (AC3) Encode (2.0 or 5.1)

r

r

r

r

r

AAC Encode (2.0 or 5.1)

r

r

r

r

r

Phase Aligned Audio Encode

r

r

r

1r

2

Linear PCM Pass-Through

n

n

n

n

n

Dolby® Digital (AC3) Pass-Through (2.0 or 5.1)

n

n

n

n

n

Dolby®E Pass-Through (Compressed)

n

n

n

n

n

ENCRYPTION

BISS Encryption (Modes 1 and E)

r

r

n

n

n

RAS Encryption (satellite output only)

n

n

n

n

n

TRANSPORT STREAM

IP Output

n

n

n

n

n

DVB-S/S2/DSNG Satellite Output

n

n

n

n

n

DVB-S2 Higher Order Modulation

r

r

r

n

n

DVB-S2X Modulation

r

r

r

r

n

ASI Input (Re-multiplexing)

r

r

r

n

n

ASI Output

n

n

n

n

n

G.703 Output

r

r

r

r

r

SMPTE 2022 Forward Error Correction

r

r

r

r

r

CONTROL

Web Browser Control

n

n

n

n

n

Front Panel Control

n

n

n

n

n

SNMP Traps and Alarms

n

n

n

n

n

nCompass Control

n

n

n

n

n
