Delivering High Performance Mobile SATCOM

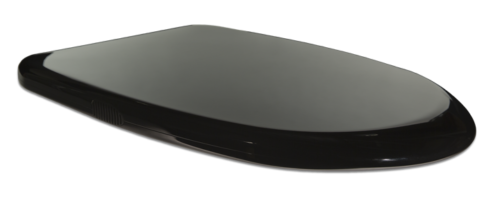

ThinKom’s rugged, ultra-low-profile 4.3 in (11cm), high throughput (up to 10 Mbps), transponder bandwidth efficient, SATCOM-on-the- Move (SOTM) antenna supports robust IP Networks, streaming video and VOIP. The ThinSat®300 provides a unique SOTM solution for News Media/Broadcast, Disaster Recovery, First Response, Homeland Security, Surveillance/Security, Trains, Public Transit and many others.

General lnformation (Antenna)
Total Weight: 120 lbs.(55 Kg, Including BUC)
Size: 59”x 39”x 4.3” (150 cm x 100 cm x 11 cm)
Polarization: Dual Tracking Linear
Transmit Band: 13.75 – 14.5 GHz
Receive Band: 10.70 – 12.75 GHz
G/T: 10-13 dB/K (8 dB/K at 20° Elev)
EIRP: 49-52 dBW (47 dBW at 20° Elev, 40 W BUC)
Xpol Isolation: 30-35 dB

Acquisition and Track
lnitial Acquisition: 60 seconds (Cold-start)
Re-acquisition after 3 minute blockage: 1 second
Track Speed/Agility: 100°/sec, 300°/sec2

Environmental
Operational Temperature: -22°F to +140°F (-30°C to +60°C)
Storage Temperature: -40°F to +158°F (-40°C to +70°C)

Mounting
Roof Rack-Mount compatible

Voltage / Power
110 VAC/60Hz or 220 VAC/50 Hz

BUC
Integrated 40 Watts
External 100 Watts

Features and Benefits

Low Profile, Light Weight and Simple Installation
• Lowest profile commercially available SATCOM antenna in the world
• Installs on any vehicle using standard roof rack

Efficient Transponder Bandwidth Utilization
• Return Link Equivalent to 88cm x 36cm (35in x 14in) Parabolic
• 1-2 bits/Hz Return Link (no spreading required)
• FCC approved up to 18.4 dBW/4kHz (FCC VMES 44 C.F.R 25.226)

High Data Rates
• 49-52 dBW EIRP with Internal 40W BUC (56 to 59 dBW with External BUC)
• HD Back-Haul Capable (up to 10 Mbps)

Broadband World-Wide Coverage and Availability
• Full International (Ku-band) Frequency Coverage
• All-Latitude Availability with Full Equatorial, High-Skew, and Near-Zenith Ops

Mobility
• Maintain connectivity in-route at highway speeds.
• Recover connectivity instantly after sustained blockages

And much more ... Fully operational with warranty, ready to deliver !
